LED installation light head LEDiKIT® Streetlight HS.28, specially tailored to luminaire model "Siteco Large Bell" with 50W HS/HI, 80W HME, with pre-mounted adapter (replaces the original luminaire cover), mounting plate coated in white RAL9010, recommended for lighting classes S4 / S5 according to EN13201, DSR optic, symmetric distribution (for plaza lighting), full cut-off, configuration package Basic (TempSafe), light colour neutral white 4,000K, CRI > 80, luminous flux 2.5klm, operating voltage 180...250V/AC 50Hz or DC, rated power 26W, PF > 0.9, safety class II, overvoltage protection (L - N) 6KV surge, permissible ambient temperature -40°C...+45°C, IP54 (in installed state), corrosion protection coating, 0.3m connection cable 2-pole 0.75mm², diameter 450mm, H 170mm, weight 1500g, service life 60,000h, developed and manufactured according to EN62031, CE conformity | Mechanical characteristics |
|---|
| Diameter/width [mm] | 450 | | Height [mm] | 170 | | Length [mm] | n.a. | | Diameter/width of control unit [mm] | n.a. | | Height of control unit [mm] | n.a. | | Length of control unit [mm] | n.a. | | Connection cable | n.a. | | Total weight [g] | 1500 | | Housing colour | White, RAL 9010 |
| Electrical characteristics |
|---|
| Electrical connection | 0.3m connecting cable 2 x 0.75m² (N,L) | | Wattage | 26W | | Light control | Basic, TempSafe | | Insulation class | Safety Class II |
| Photometric characteristics |
|---|
| Luminous flux [klm] | 2.5 | | Light colour | 4,000K, neutral white, CRI>80 | | Light distribution | DSR-Optic, symmetric |
| Downloads / Links |
|---|
| Photometric planning data EULUMDAT | 120.100.LDT | | Mounting instructions | MA_LEDIKIT_HSx.pdf | | Datasheet as PDF | 120.100N.28G.pdf |

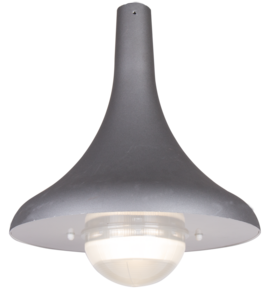

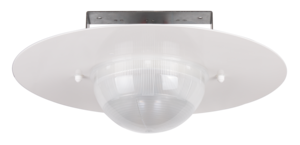

| | Product Photo | Representation of the existing luminaire |  |  |
DSR-Optic, symmetric distribution |
