LED installation light head LEDiKIT® Streetlight VS1D two-length, universal bracket, diffuser optic, vertical or suspended position, asymmetric distribution, full cut-off, configuration package Professional (AutomaticDimControl, constant luminous flux over service life, TempSafe), light colour candle white 1,900 K, CRI > 80, luminous flux 1.9klm (constant), operating voltage 180…250 V / AC 50 Hz or DC, rated power 20…24W, PF > 0.9, safety class II, overvoltage protection (L - N) 6 KV surge, permissible ambient temperature -40 °C…+45 °C, IP42, corrosion protection coating, 0.3m connection cable 3-pole 0.75mm², diameter 95 mm, H 272 mm, weight 970g, service life 60,000h, recommended for lighting classes S4 / S5 according to EN13201, developed and manufactured according to EN62031, CE conformity| Mechanical characteristics |
|---|
| Diameter/width [mm] | 95 | | Height [mm] | 272 | | Length [mm] | n.a. | | Diameter/width of control unit [mm] | n.a. | | Height of control unit [mm] | n.a. | | Length of control unit [mm] | n.a. | | Connection cable | n.a. | | Total weight [g] | 970 | | Housing colour | White, RAL 9010 |
| Electrical characteristics |
|---|
| Electrical connection | 0.3m connecting cable 3 x 0.75m² (N,L,PST) | | Wattage | 20...24W | | Light control | Professional | | Insulation class | Safety Class II |
| Photometric characteristics |
|---|
| Luminous flux [klm] | 1.9 | | Light colour | 1,900K, candlewhite, CRI>80 | | Light distribution | Diffusor optic |
| Downloads / Links |
|---|
| Photometric planning data EULUMDAT | 110.110.LDT | | Mounting instructions | LEDIKIT_VS1D.pdf | | Datasheet as PDF | 113.171C.pdf |

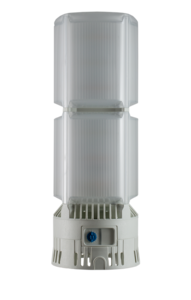

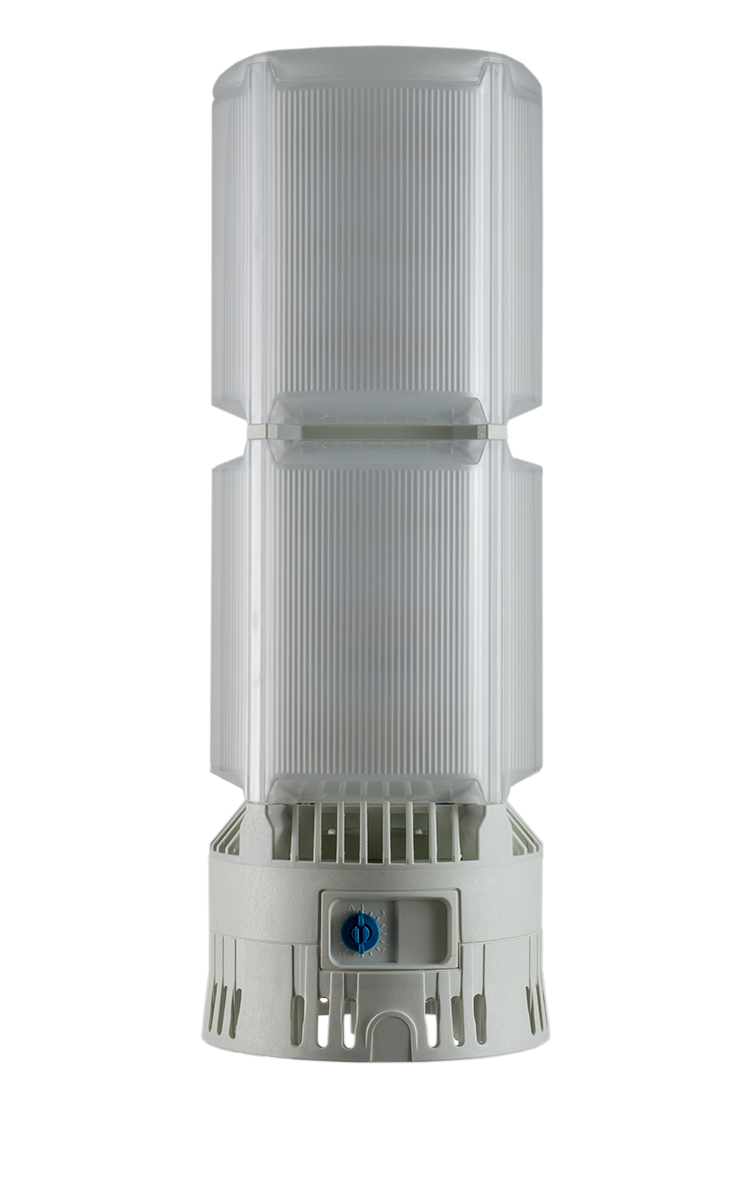

| | Product Photo | Representation of the existing luminaire |  |  |
Diffuser optic, vertical or suspended position, asymmetric distribution |
