LED-Austauschleuchtmittel LED27 Streetlight ECOIII, Diffusoroptik, beliebige Brennlage, symmetrisch abstrahlend, Lichtfarbe warmweiß 3.000K, CRI > 80, Lichtstrom 2,8klm, Betriebsspannung 180…250V/AC 50Hz oder DC, Nennleistung 21W, PF > 0,5, SKII, Überspannungsschutz (L - N) 4KV Surge, zul. Umgebungstemperatur -35°C...+35°C, IP55 (gilt nicht für Sockel), Korrosionsschutzlackierung, mit Sockel E27, DM 65mm, H 185mm (inkl. Sockel), m 150g, Lebensdauer > 40.000h, entwickelt und gefertigt nach EN62560, Konformität CE| Mechanical characteristics |
|---|
| Diameter/width [mm] | 65 | | Height [mm] | 185 | | Length [mm] | n.a. | | Diameter/width of control unit [mm] | n.a. | | Height of control unit [mm] | n.a. | | Length of control unit [mm] | n.a. | | Connection cable | n.a. | | Total weight [g] | 150 | | Housing colour | White, RAL 9010 |
| Electrical characteristics |
|---|
| Electrical connection | E27 base (optional adapter to E40) | | Wattage | 21W | | Light control | n.a. | | Insulation class | Safety Class II |
| Photometric characteristics |
|---|
| Luminous flux [klm] | 2.8 | | Light colour | 3,000K, warm white, CRI>80 | | Light distribution | Diffusor optic |
| Downloads / Links |
|---|
| Photometric planning data EULUMDAT | | | Mounting instructions | LED27_ECO3_Laternix_2018_ver1.1.pdf | | Datasheet as PDF | 101.023.pdf |

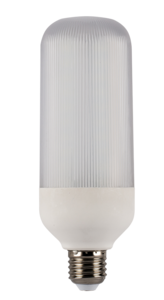

| | Product Photo | |  |  |
Diffusor optic, any burning position, symmetric distribution |
